22 HYBRID TUBE AMP - DISCONTINUED [ EKF-01 ]

22 HYBRID TUBE AMP  -   DISCONTINUED
Model number EKF-01
Price JPY 77,000 (incl.tax)
[JPY 70,000 (excl.tax)]
SolderingNot required
Tools required
No tool required

OUTLINE

DISCONTINUED

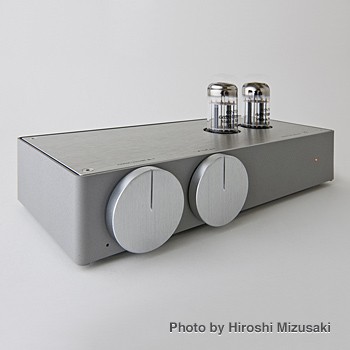

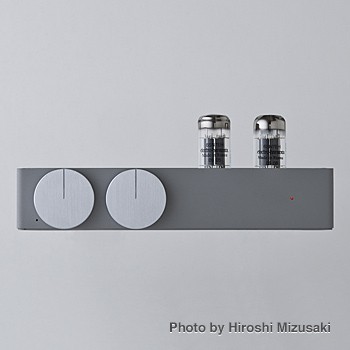

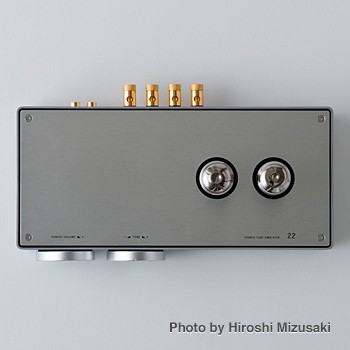

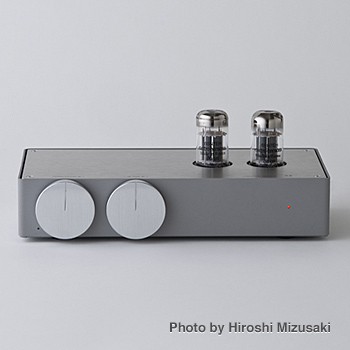

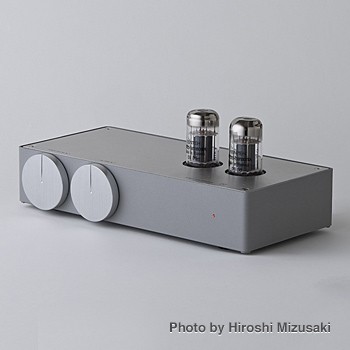

A hybrid tube amp with sophisticated look. For the input terminals, PHONE IN is equipped in addition to conventional LINE IN. PHONE IN has the characteristics such as high sensitivity and low impedance that correspond to headphone output of portable audio players. With these 2 inputs, users can enjoy mixing two different sound sources. The vacuum tube circuits and the output amplifier circuit are automatically shut down and it shifts to SLEEP mode when there are no sound signals for more than 10 minutes. When a sound signal is input again while it is in SLEEP mode, it will reboot automatically.
The exposed 2 tubes get just as hot as a canned coffee from a vending machine and very safe.
Enrich your life with 22’s simple and beautiful form and warm sound of tubes that fits into various lifestyle scenes.
Designed by Mr. Koichi Futatsumata.

SPECIFICATIONS

Stock tube: 6SN7 (Electroharmonix) x 2pcs
Power amp stage: Class-D, BTL output
Maximum output: 12W + 12W (when 6-8Ω speakers are used)
Output terminal: Gold-plated binding terminal (Banana plug available)
Input sensitivity: INPUT1: 25mV (33Ω)
(Input resistance) INPUT2: 400mV (40kΩ)
Input terminal: INPUT1: Stereo mini phone jack (Φ3.5mm)
INPUT2: RCA jack
Supply voltage: Amplifier: 15V DC
AC adapter: 100-240V AC
Power requirements: In maximum output: 42W
In sleep mode: 0.1W
Dimensions: W265 x H103 x D151mm (including projections)
Weight: Approx.1.6kg
